Interior wall systems
CLB Wall Panels

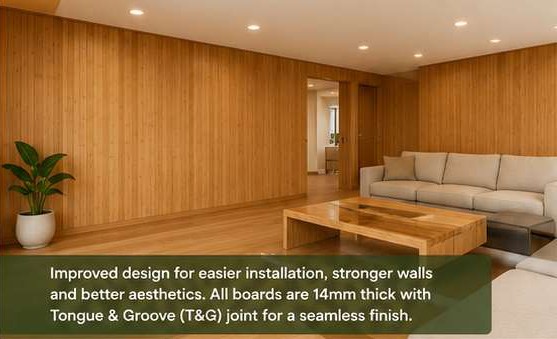

Easier installation, stronger walls, better aesthetics
An improved design for easier installation, stronger walls and better aesthetics. All boards are 14 mm thick with a tongue and groove joint for a seamless finish. The core is Cross Laminated Bamboo for strength and stability.
Made with NuBam CLB engineered bamboo board.
Download product sheet (PDF)
Thickness
14 mm
Joint
Tongue and groove
Core
Cross Laminated Bamboo
Use
Interior walls
Design features
Tongue and groove joint for fast, easy and tight installation
Cross base support concept for flat and stable panels
All boards 14 mm thick for strength and durability
Minimal visible gaps for a clean and seamless look
Suitable for residential, commercial and hospitality interiors
Surface grain options
Horizontal grain
A classic, natural and warm look
Vertical grain
A modern, sleek and uniform look
Tongue and groove joint
Installation steps
- 1
Prepare the wall
Ensure the wall is level and dry, and install vertical battens or furring strips at 400 to 600 mm on centre.
- 2
Start installing
Place the first panel with the groove side facing out, or as preferred.
- 3
Lock the next panel
Insert the tongue of the next panel into the groove and push it in.
- 4
Secure
Nail or screw through the tongue, a hidden fastening, into the backing batten.
- 5
Continue
Continue panel by panel until the wall is complete, then add trims for finishing.
Installation notes
Ensure the wall is level, dry and structurally sound
Use corrosion resistant screws or nails
Leave a 3 to 5 mm expansion gap at the top, bottom and ends
Allow panels to acclimatise 48 to 72 hours before installation
Finish with matching bamboo trims for a premium look
Recommended finishes
Typical applications
Interior wall paneling
Feature walls
Partitions
Hospitality and commercial spaces
Residential spaces
Specifications
- Material
- Engineered Bamboo CLB (Cross Laminated Bamboo)
- Thickness
- 14 mm
- Joint type
- Tongue and groove
- Surface grain options
- Horizontal or vertical
- Application
- Interior walls
Next step
Planning a project with CLB Wall Panels?
Tell us the scope and we will price it and confirm lead time. You can also request samples to evaluate the grain, finish and build quality first.
