Structural cladding
CLB Columns and Beams
Easier installation, stronger structure, better aesthetics

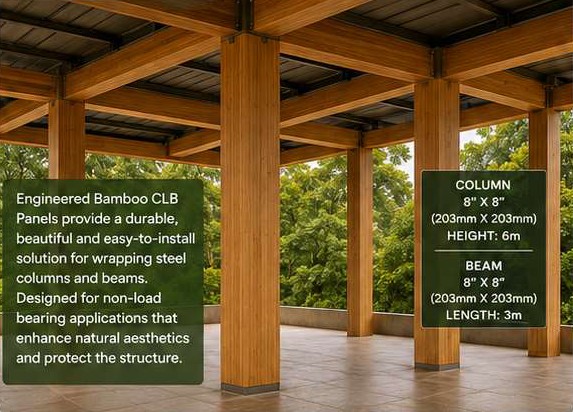

Engineered Bamboo CLB panels provide a durable, beautiful and easy to install solution for wrapping steel columns and beams. Designed for non load bearing applications that enhance natural aesthetics and protect the structure.
Made with NuBam CLB engineered bamboo board.
Download product sheet (PDF)
Thickness
16 mm
Column size
8 by 8 inch, up to 6 m
Beam size
8 by 8 inch, up to 3 m
Load
Non load bearing
Design features
Direct installation on steel columns and beams
All boards 16 mm thick for strength and durability
Lightweight yet strong
Minimal visible gaps for a clean and seamless look
UV and moisture resistant finish for long lasting performance
Suitable for interior and exterior covered applications
Surface grain options
Horizontal grain
A classic, natural and warm look
Vertical grain
A modern, sleek and uniform look
Tongue and groove joint
Installation steps
- 1
Prepare the steel member
Ensure the steel is clean, dry and free from rust, oil and debris.
- 2
Apply adhesive
Apply PU construction adhesive in vertical beads.
- 3
Position the panel
Place the panel and press it firmly onto the steel member.
- 4
Fasten securely
Use stainless steel screws to secure the panel.
- 5
Continue wrapping
Repeat on all sides for columns, or along the length for beams.
Installation notes
Ensure the member is level, plumb and structurally secure
Use corrosion resistant screws or nails
Leave a 2 to 3 mm expansion gap at the top and ends
Allow panels to acclimatise 48 to 72 hours before installation
Finish with matching trims for a premium look
Recommended finishes
Typical applications
Structural columns and beams
Open air pavilions
Interior architectural features
Commercial buildings
Hospitality and resort structures
Residential spaces
Specifications
- Material
- Engineered Bamboo CLB (Cross Laminated Bamboo)
- Thickness
- 16 mm
- Member size
- Columns 8 by 8 inch up to 6 m, beams 8 by 8 inch up to 3 m
- Joint type
- Tongue and groove
- Surface grain options
- Horizontal or vertical
- Application
- Beams and columns, non load bearing
Next step
Planning a project with CLB Columns and Beams?
Tell us the scope and we will price it and confirm lead time. You can also request samples to evaluate the grain, finish and build quality first.
